Helios Nitrosport 8x42 Binoculars Review

Helios Binoculars
Whilst far from being the most well known optical brand out there, Helios continues to surprise me by offering products that are mostly positioned within the lower price points, but which deliver far more than you'd expect.

Take for example the Helios Mistral WP6 8x42 that I reviewed and which went on to share the prize as the Best Low Cost binocular (Under $130 / £130) that I tested in 2016.

So with this in mind, I decided that it would be interesting to see how well the very slightly cheaper (approx $10 / £10) Nitrosport would perform and exactly what sacrifices (if any) Helios would have to make in order to deliver a bin at this lower price:

Helios Nitrosport 8x42 Binoculars Review

Main Details:

• Mid Price Binoculars, approx: $130 / £100
• Open Bridge Body Design
  • Polycarbonate Housing
  • Water & Fog Proof
  • Tripod Adaptable
• Fully Multi-Coated Optics
• BaK-4 Roof Prisms
  • Phase Corrected
  • Silver Mirror Coatings
• Field of View:
  • 124m @ 1000m / 372ft at 1000 yards
  • Real field of view: 7.1°
• Minimum Focus Distance: 9.8ft
• 17mm of Eye Relief
• Weight: 22.3ozs (633g)
• Dimensions: 5.7in (14.5cm) x 5.3in (13.5cm) x 2.2in (5.6cm)

The Exterior

Take a look at the video below in which I go over all of the outer features and components used on these Helios Nitrosport 8x42 binoculars. It will also give you a great idea of proportions etc:

Open Bridge Design

In contrast to the Helios Mistral that features a single top hinge body, the Nitrosport 8x42 binoculars has an open bridge or double hinge body design:

• Potentially this design can reduce weight with less body material required, but often the two hinges more than make up for that
• Main benefit of this shape in my opinion is that it leaves much of the barrels free to hold onto and makes for a secure grip when carrying the bins about in one hand.
• I found no issues with the body or hinges on the Nitrosport and both felt robust

Rubber Armour

• As is the case with almost all modern bins, these have a rubber armour covering most of the chassis, apart from the two hinges
• Rubber used is hard, thin and quite smooth:
  • Offers less grip than softer rubbers or more textured rubber surfaces
  • less cushioning from impacts
  • Tougher than softer rubbers with less chance of perishing

Body Material
Helios use a polycarbonate plastic to make the main body, which at this price range is common.

Advantages

• Lightweight
• Cheaper to produce
• Does not corrode

Higher end optics will employ more expensive materials like Aluminium and or Magnesium into the chassis construction, which is not as lightweight as plastic, but does make for a stronger and possibly longer lasting shell.

Water & Fogproof
Most bins these days are described as being waterproof, but few (especially in the lower price categories) go on to quantify that statement.

So it was nice to read that Helios Nitrosport is rated as being waterproof to IPX Class 5, which means that they are testes and will remain watertight to a depth of 0.5m depth for 3 minutes.

Nitrogen gas is also pumped into the chassis during manufacture, this moistureless gas prevents the internal lenses from fogging up.

Remember also that a fully sealed instrument is not only protected from water, but will stop dust and other small particles from entering that could also ruin the view.

Tripod Adaptable
By removing the dust cap located on the bridge closest to the objective lenses, it reveals a thread which makes it very easy to screw in a standard tripod adapter which can then be mounted onto your tripod.

Eye-Piece Housings & Eye-Cups
I was impressed to find out that the Eye-Piece housing and the eyecup sub-structure is made from metal. At this lower price it is not at all uncommon for you to have these parts made from plastic to save on production costs.

As this is one of the areas that gets damaged most often if you drop your bins, then the importance of this should not be understated.

The eyecups themselves are very typical, have an external diameter of 43mm and have a thin rubber coating. Whilst these may not be the most comfortable that I have come across, they are also not particularly uncomfortable.

The twist-up (and down) mechanism on my sample was very smooth and whilst the cup did have a tiny amount of free play, they amount is so minimal that it should not be considered an issue.

I think whilst technically the eye-cups on the Helios Nitrosport 8x42 binoculars do have a couple of fixed stops between fully extended and retracted, it does not click into them as positively as you would hope and so finding these intermediate levels of eye-relief and staying at them is not quite as simple as on some.

However I will add that as most people who don't wear glasses will probably use the bins with the cups fully extended and those who do wear glasses will have them fully retracted, this small point will not be an issue for most users.

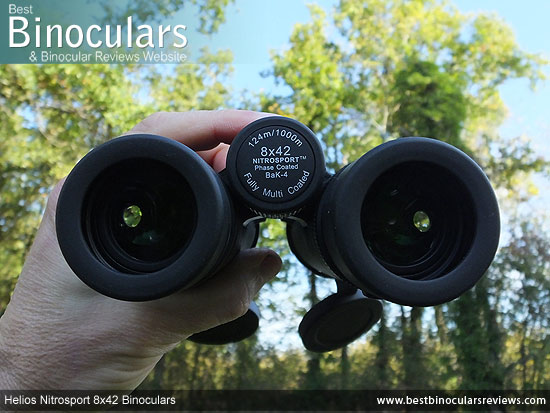

Focus Wheel

• Large (32mm in Diameter) and well positioned makes it easy to reach
• Grooved track, increases grip. This combined with the size important when wearing gloves
• Smooth action with "just the right amount" of resistance to movement (in my opinion) - easy to turn, but does not spin too easily
• No free play or stiff sections at any point along the focal plane
• Low geared mechanism: Takes just over 2 turns (approx 740°) to go from near to far focus extremes. This means that it takes a little longer to make large focus adjustments, but it is a little easier to fine tune the focus

Diopter Adjustment

• Ring located in usual position on right eyepiece
• Used to calibrate the bins to your particular vision
• Not lockable, which is preferable but usual at this price range
• The one on the Helios Nitrosport 8x42 binocular is a little different in that it has two raised knobs on the ring (one under and one on top) makes it easier to adjust, but also makes it easier to move by accident.
• No printed scale - so need to make your own mark (with a permanent marker or etch with a knife) if your setting is not neutral

Body Quality Score: 7/10

Weight
Tipping the scales at 22.3ozs / 633g these Helios Nitrosport's rank right up there with the most lightweight 42mm binoculars that I have tested. The polycarbonate chassis and open bridge design do play their part in achieving this:

Dimensions
Whilst Helios do not publish the dimensions, I measured them to be as follows:

• Length: 5.7in / 14.5cm (with eye-cups retracted)
• Width: 5.3in / 13.5cm (hinges open (IPD at maximum))
• Height 2.2in / 5.6cm (with hinges open)

Which as you can see from the table above are all pretty standard for a 42mm binocular

Body Stats Score: 8/10

Optics

Eyepieces

The eyepieces on these Helios Nitrosport 8x42 binoculars:

• Consist of 4 elements in 3 groups.
• External ocular lens has a diameter of 23mm which is reasonably large for a 42mm bin

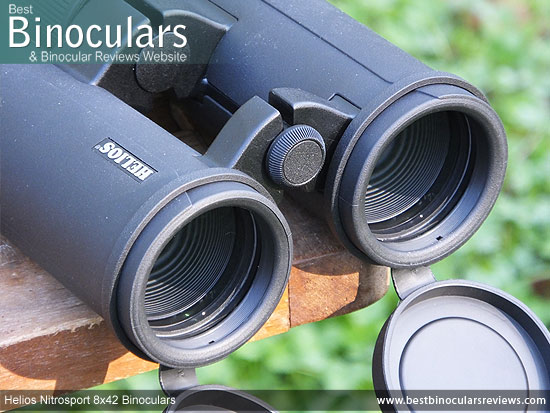

Objective Lenses

Each of the 42mm objective lenses:

• Consist of 4 elements arranged into in 3 groups
• Set back about 8mm from ends of barrels = reasonable amount of protection

Prisms

The roof prisms within these Helios Nitrosport's are made from BaK-4 glass which is a good thing as you can occasional find bins at this price with BK-7 prisms which for bins are not as ideal.

Optical Coatings

Anti-Reflection Coatings
Good to establish that the optics on these 8x43 Helios Nitrosport binoculars as being Fully Multi-Coated.

This implies that every exterior glass surface throughout the entire optical system has been multi-coated with an anti-reflection material. The result is a binocular that will transmit more of the light that it captures in the correct way, for a brighter and better quality image than those with fewer coatings on less surfaces. For more check out this section on Anti-Reflection Lens Coatings.

Phase Correction Coatings
I was really impressed to discover that the prisms on the Nitrosport have had phase correction coatings added to them. At this price range this is unusual and most certainly places them above most of their direct competition. The result should be that the image that they deliver is of a higher resolution and potentially with better contrast than those that are not corrected.

Prism Reflection Coatings
The prisms on these are Silver mirror coated. Once again this is good as there will be some at this price range that will only have aluminium mirror coatings, which are cheaper, but do not reflect as much light and will therefore probably not have an image that is as bright or as good quality as these.

Note: The best option is for roof prisms to be dielectrically coated as this treatment enables the surface to reflect more than 99% of the light that hits it. However this process is expensive and is only found on high end optics.

Coating Comparisons

Optical Components Score: 7/10

Optical Stats

Field Of View (FOV)

The width/height of the view you see through this 8x42 Helios Nitrosport binocular is 372ft wide/high when measured at a distance of 1000 yards away. If you compare this field of view to other 8x42mm binoculars, you can see (in the table below) that this is not in anyway bad, but it does place them on the lower end of the scale.

Eye-Relief:
The 17mm of eye-relief combined with the reasonably good eye-cups that I have already gone over is good and makes these a good option should you need or want to use your binoculars whist wearing glasses.

Close Focus
The advertised minimum close focus is 9.8ft, which is a little on the long side for a bin in this configuration. As such I feel that these would not be the ideal choice should you enjoy observing objects (at a museum for example) or things (like butterflies or even birds) from closer ranges.

Optical Stats Score: 7/10

Image Quality

In general use whilst out in the field, my general thought was that for the price the view through these Helios Nitrosport binoculars was good and I was never aware of any distortions or other major flaws in the view.

To put this into context and to be a little more precise in my opinions, I compared the view through them against my benchmark 8x42s of which I have two: a mid range 8x42 and a very high end, "alpha" 8x42 binocular and below are my observations:

Colors & Contrast
Firstly it s important to establish that the colors of the image looked natura and I could not spot any sort of artificial tinting that you sometimes see, especially in cheaper instruments.

Then I thought that whilst the Helios Nitrosport did lack a certain amount when compared to my alpha 8x42 benchmark in terms of just how vivid the colors are, they were no worse or better than my mid range 8x42 benchmark. Thus I would say for a "cheap binocular" these would do very well if you were to compare them to the majority of their direct competition.

The same could be said for the contrast: The amount of contrast looks natural, so not overly contrasting, or washed out.

Image Brightness
Image brightness to me was the same as that of my mid-level benchmark when compared on an overcast day. Be that looking at bright objects in the sky, or within the dark foliage in trees for example.

Both were observably less bright than my top of the range 8x42 benchmark which is to be expected, but I have to stress that the amount was not massive and only really obvious when looking at darker areas etc.

Color Fringing
Under extreme conditions (like viewing a dark object against a bight background), there is a certain amount of color fringing that is evident around the edges of the object.

However I have to stress that this level is really not any more than what I expect to see on a mid range binocular and only a fraction less than what I observed through my alpha bins.

So once again I would have to say that for a cheap binocular, these perform very well in this area.

Image Distortions & Blurring

• As I mentioned at the beginning of this section, I never noticed any distortions (like curving etc) to the image
• The image softening that you can see around the edges of the view in almost all binoculars was minimal and well within the boundary of what I would consider to be normal

Score for Image Quality: 8/10

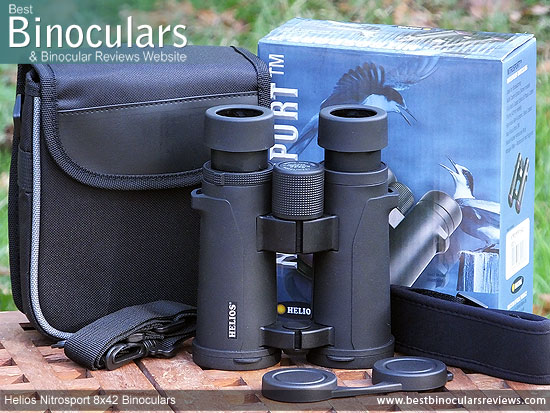

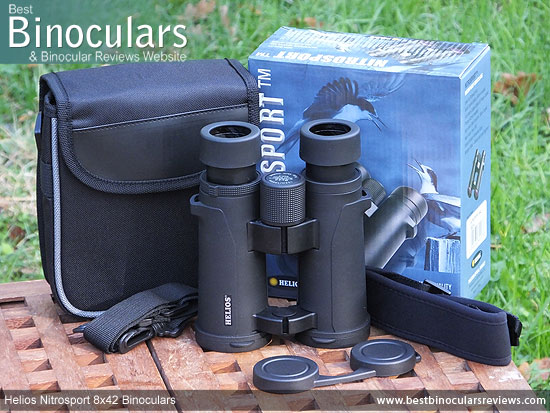

Included Accessories:

The included accessories that you get with the Helios Nitrosport 8x42 binocular are very typical for an instrument at this price level and can be summed up by saying they are functional, but just lack a little in terms of the attention to detail and feeling of quality.

So whilst this is what I would expect, it is a little bit of a shame because the actual binocular is the opposite to this. They deliver more than what I would expect and the feeling of quality is above that of their price tag.

Main Points

• Carry Case

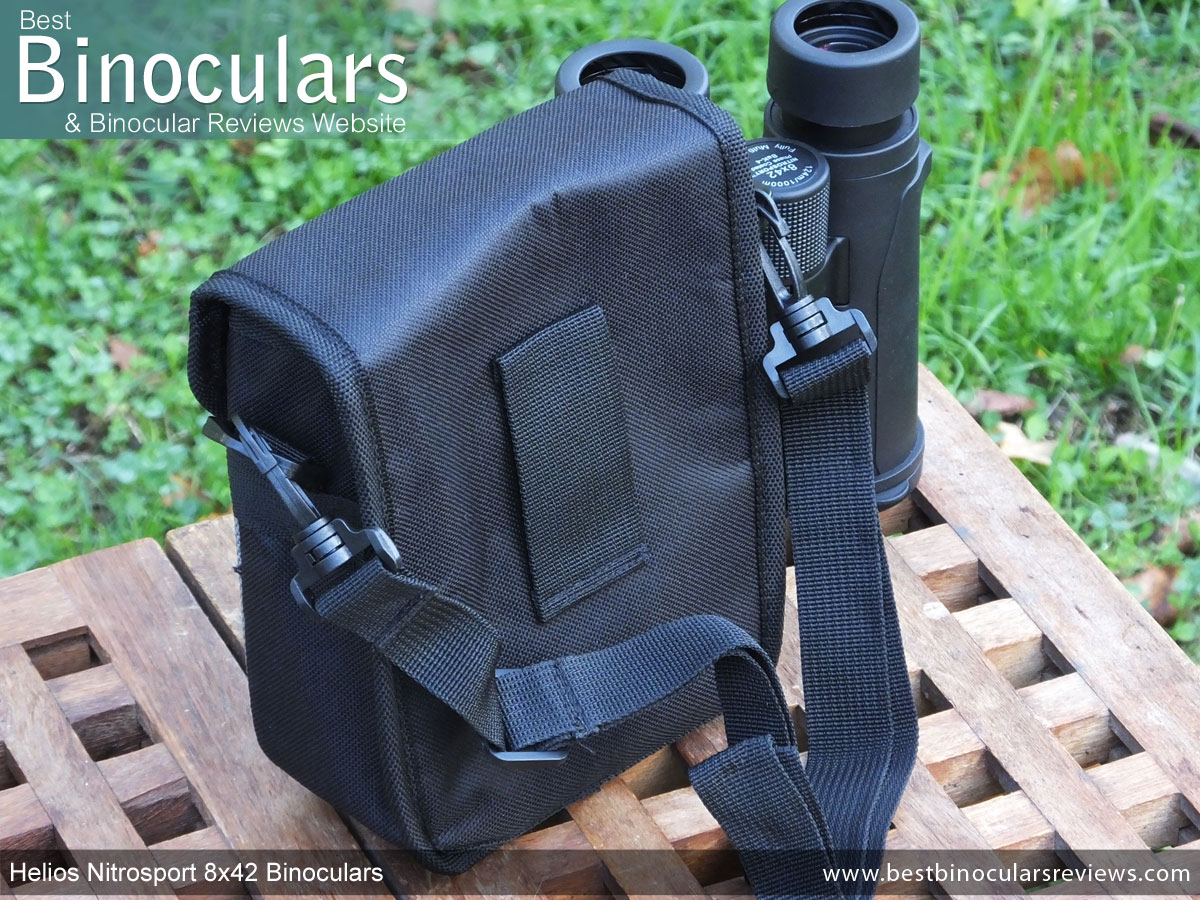

  • Soft carry case is lightly padded, offers a minimum level of impact protection
  • Velcro closure makes for a speedy access, but not as secure as a Zip and need to be aware of the noise it makes when ripping it open so as not to frighten away wildlife/birds.
  • Binoculars fit well inside and can be stored with eyecups extended and neckstrap attached
• Neck Strap
  • Well padded, but generic - does not add to the instrument
• Lens Covers

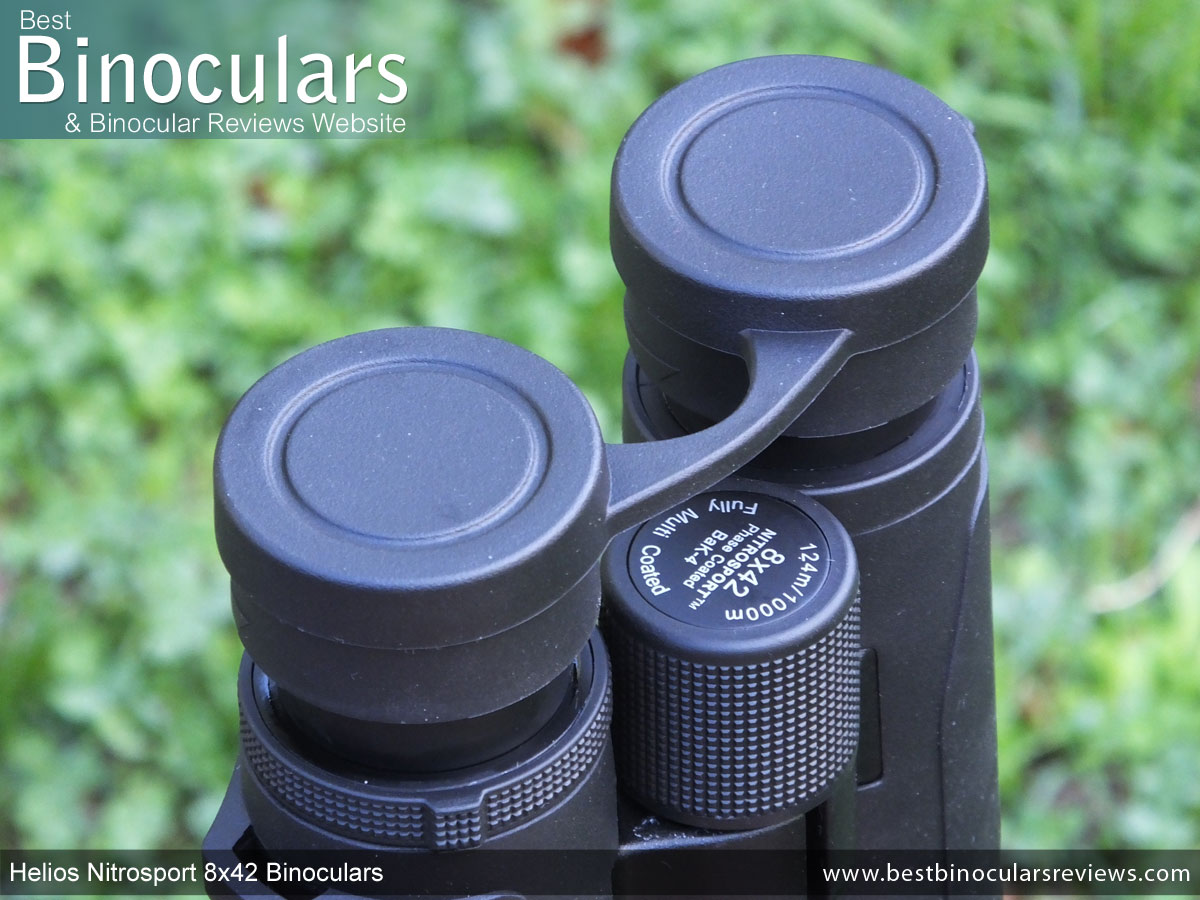

  • Both the rain-guard and objective lens covers fit well and perform their intended function well
• Cleaning Cloth
  • Average quality cloth (normal at this price), fine for cleaning body and emergency lens use, but suggest investing in a lens cleaning kit
• Instructions
  • Very basic and generic instructions on a sheet of paper, should have better
• Warranty
  • These Helios Nitrosport binos come with a 5-Year Limited Warranty

Extras Score: 6/10

Helios Nitrosport 8x42 Binocular Comparisons

Review Conclusions:

Shopping within this low price bracket can be problematic because you get a large number of poor quality optics that really are not worth the proportionately small amount of money you spend on them. Thankfully these Helios Nitrosport 8x42 binoculars not one of those and actually if truth be told I think these easily rank alongside the best that I have used within this price level in many areas and are therefore well worth considering if your budget is at or around $130 / £100:

Strengths:

• Very lightweight 8x42 binocular
• Good quality exterior that makes them look way more expensive than what they are
• Large focus wheel with very smooth mechanism
• Great level of optical coatings especially considering the price range
• This relatively high level of optics and coatings used translates to a really good quality view that I feel is a match for any at this price point

Weaknesses:

• Poor minimum close focus distance
• Would prefer a slightly wider Field of View on a 8x42 binocular
• Performs it's function, but the generic neckstrap looks much cheaper than the instrument
• Carry case is unbranded and so looks to be cheaper than the instrument and has minimal padding.

Ideal Uses

• General Use
• Wildlife & Hunting

Also more than capable for

• General Bird Watching
• Outdoor Sports
• Safari & Travel
